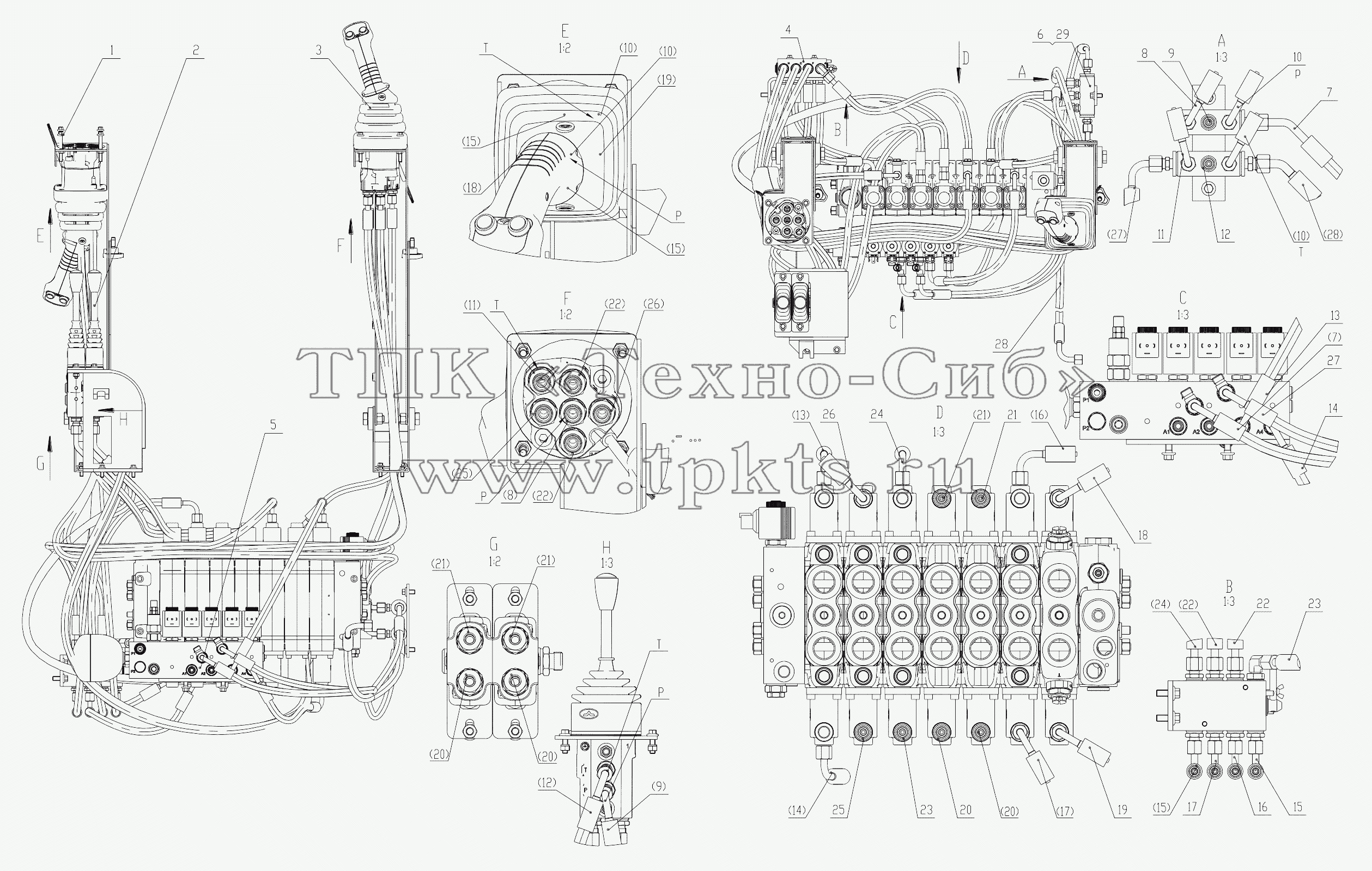

| Позиция на иллюстрации | Заводской номер детали | Название детали | ||
|---|---|---|---|---|
| 1 | 12C4308 | Control lever as | В корзину | |
| 2 | 12C4309 | Control lever as | В корзину | |
| 3 | 12C4307 | Control lever as | В корзину | |
| 4 | 12C4310 | Switching valve as | В корзину | |
| 5 | 12C4311 | Pilot oil supply valve as | В корзину | |
| 6 | 09D1988 | Tube gp | В корзину | |
| 7 | 05C6148 | Hose as | В корзину | |
| 8 | 05C6149 | Hose as | В корзину | |
| 9 | 05C6365 | Hose as | В корзину | |
| 10 | 05C6151 | Hose as | В корзину | |
| 11 | 05C6153 | Hose as | В корзину | |
| 12 | 05C6364 | Hose as | В корзину | |
| 13 | 05C6155 | Hose as | В корзину | |
| 14 | 05C6156 | Hose as | В корзину | |
| 15 | 05C6158 | Hose as | В корзину | |
| 16 | 05C6159 | Hose as | В корзину | |
| 17 | 05C6160 | Hose as | В корзину | |
| 18 | 05C6161 | Hose as | В корзину | |
| 19 | 05C6162 | Hose as | В корзину | |
| 20 | 05C6366 | Hose as | В корзину | |
| 21 | 05C5417 | Hose as | В корзину | |
| 22 | 05C6166 | Hose as | В корзину | |
| 23 | 05C6169 | Hose as | В корзину | |
| 24 | 05C6170 | Hose as | В корзину | |
| 25 | 05C6171 | Hose as | В корзину | |
| 26 | 05C6172 | Hose as | В корзину | |
| 27 | 05C6173 | Hose as | В корзину | |
| 28 | 05C6174 | Hose as | В корзину | |
| 29 | 01B0418 | BOLT | В корзину |
